Autel XP400 PRO Key and Chip Programmer Plus Autel IMKPA Expanded Key Programming Accessories Kit for Renew & Unlock

Autel XP400 PRO Key and Chip Programmer Plus Autel IMKPA Expanded Key Programming Accessories Kit for Renew & Unlock

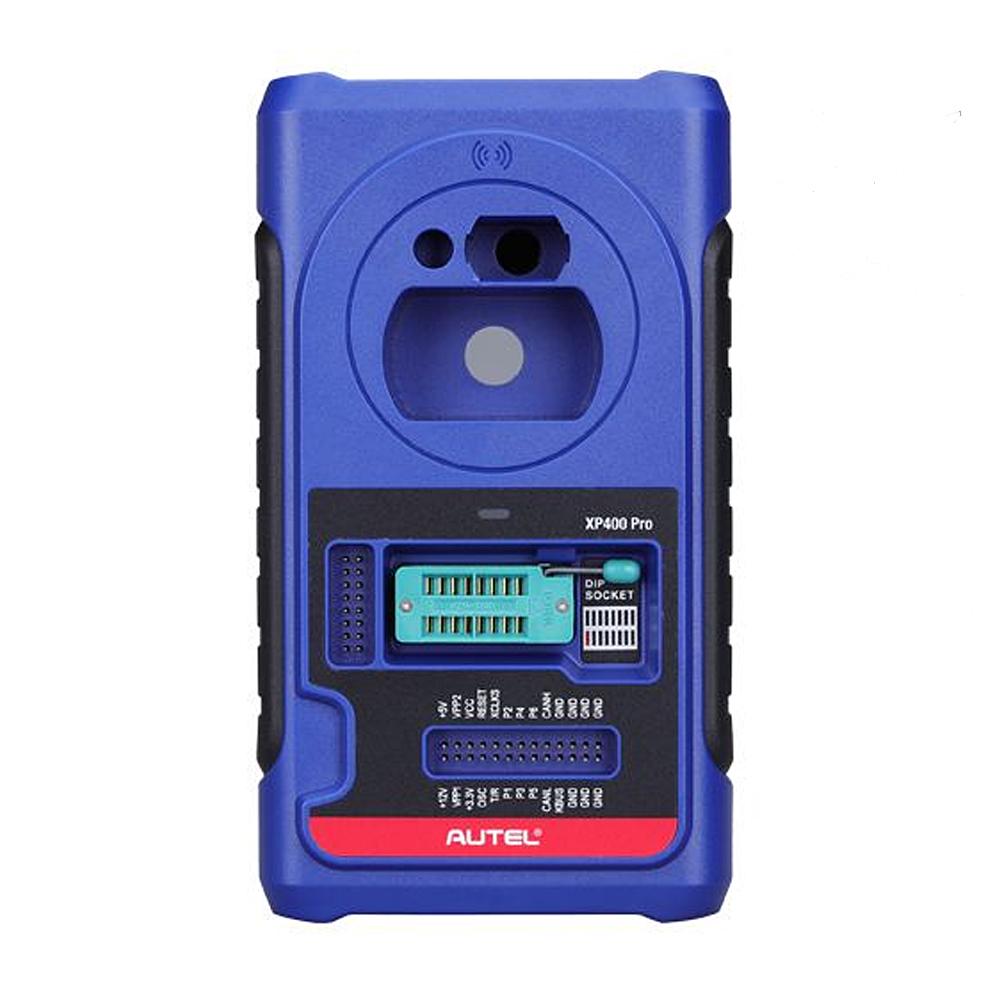

The MaxiProgrammer XP400 Pro has been specially designed to work with Autel's IM tablets like IM608, IM608 Pro to aid automotive technicians to program vehicle keys. With the newly upgraded key programmer XP400 Pro, the MaxiIM IM608 Pro is the most advanced key Programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet.

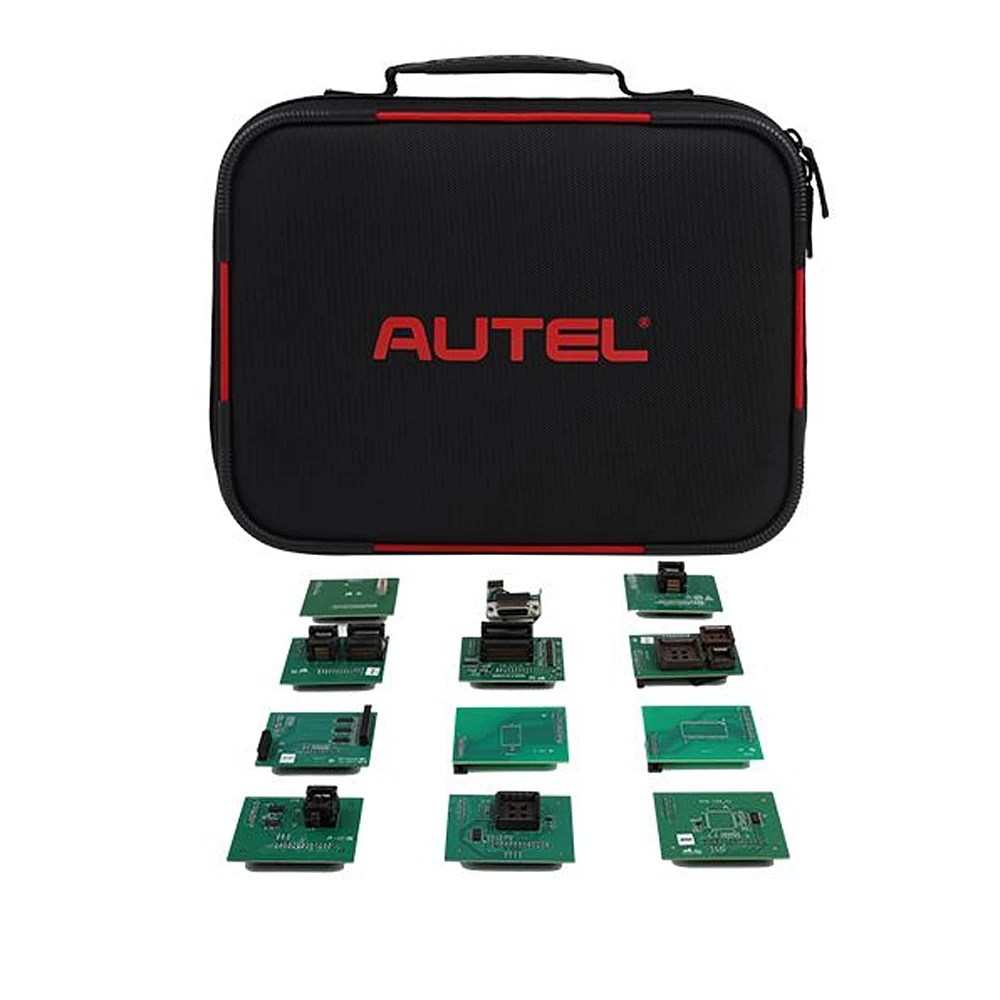

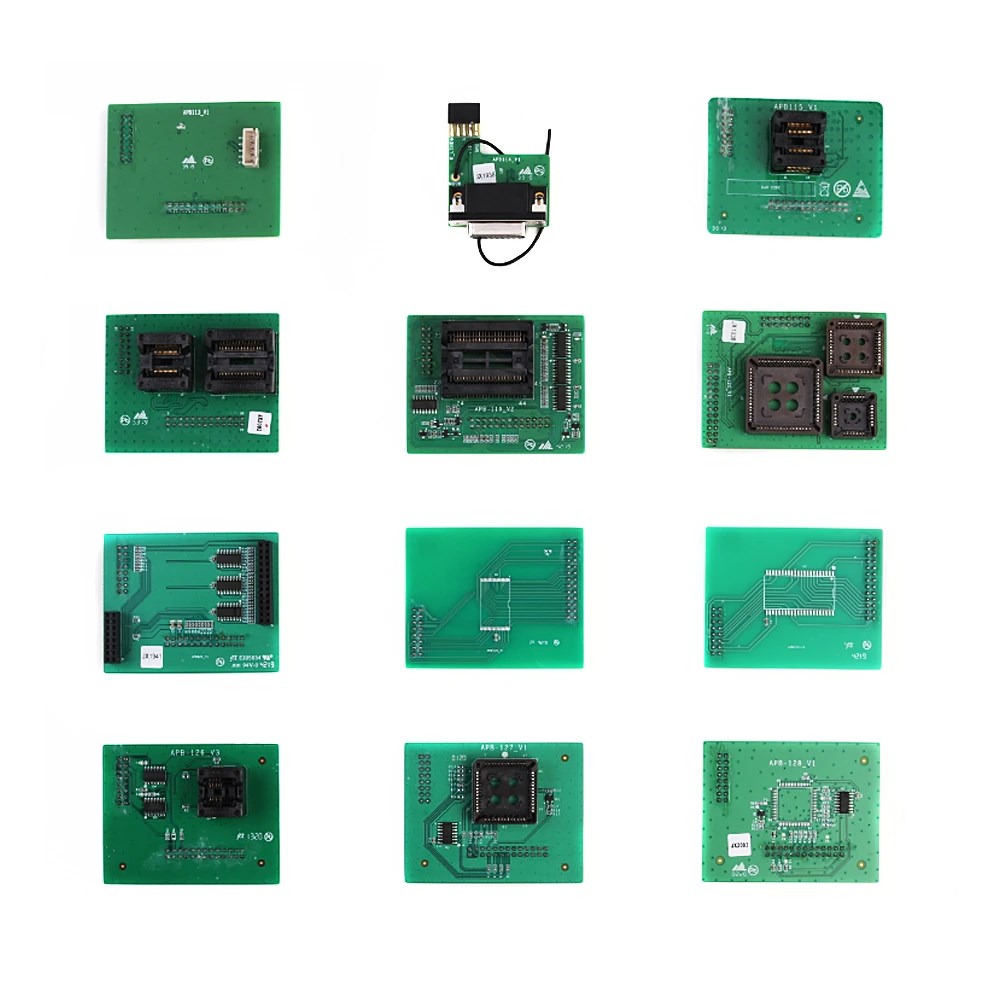

AUTEL IMKPA KEY PROGRAMMING ACCESSORIES KIT, compatible with the XP400Pro Key and Chip Programmer, includes 12 adapters for the XP400Pro that enables Read/ Write/ Erase for Mercedes Benz ESL_W209/ W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and Volkswagen/ AUDI/ BMW/ Benz Key Unlock.

Autel XP400 Pro Functions:
(1) Read transponder data (including Mercedes Benz infrared smart key), and generate exclusive keys.
(2) Read/write on-board EEPROM chip data, and read/write MCU/ECU chip data.
(3) Read/write remote control transponder data and detect key frequency.
(4) Compatible with the key programming diagnostic tablet or a computer with installed key programming software, the XP400 Pro can read/write transponder data quickly and accurately. XP400 Pro Programmer Features:

XP400 Pro Programmer Features:
Advanced all-in-one Key Programmer;
Expanded EEPROM functions for more component access;
170+ Types Odometer component reading functions;
180+ Immobilizer ECU component types;
40+ Engine ECU component types;
2000+ MCU component types;
440+ EEPROM component types;
Compatible with IM508 and IM608;
Includes 1-Year Warranty / Free Software Update for Life of Tool


IMKPA Kit：
Expanded Key Programming Accessories
Supports over 10 key unlock types
BMW EWS3 key learning
Benz NEC key learing
Benz ESL_W209 read/write/erase
Compatible with IM508 and IM608 (XP400 Pro required)

XP400 Pro Specifications:
Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current: < 500 mA
Maximum Consumption: 2.5 W

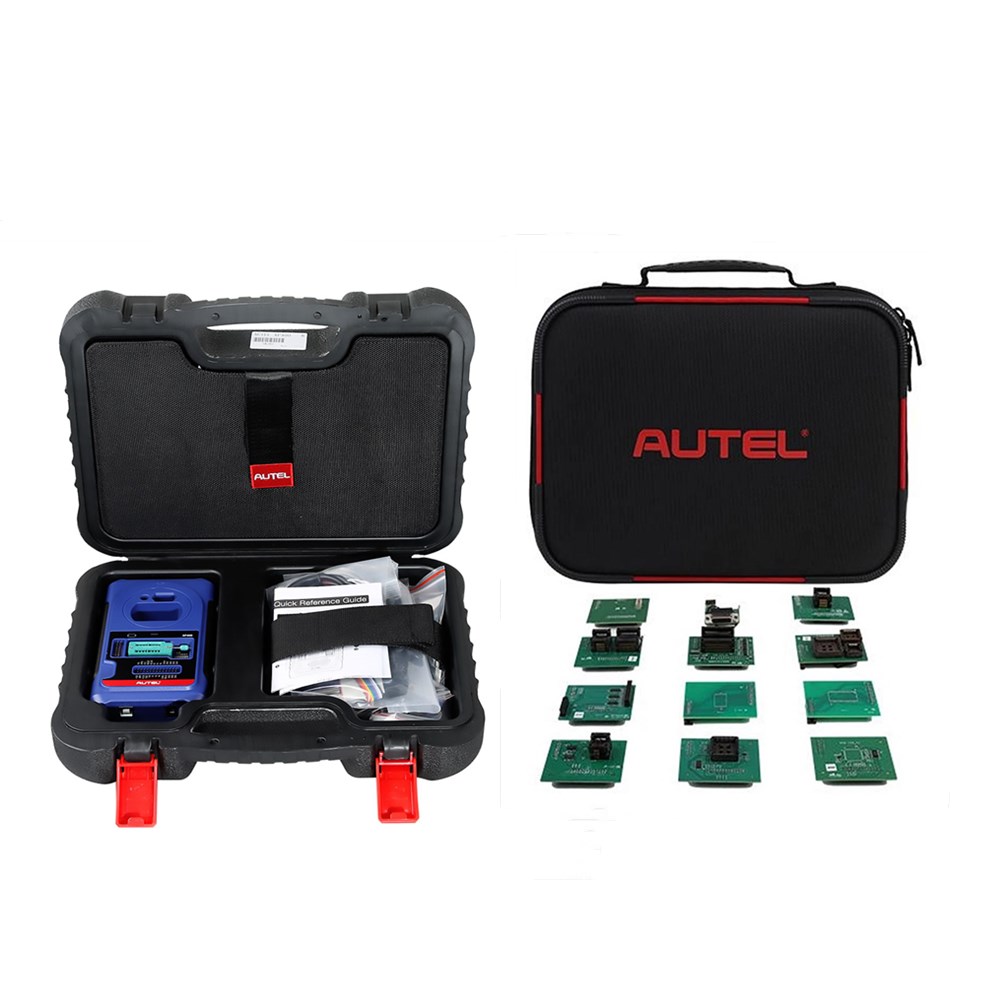

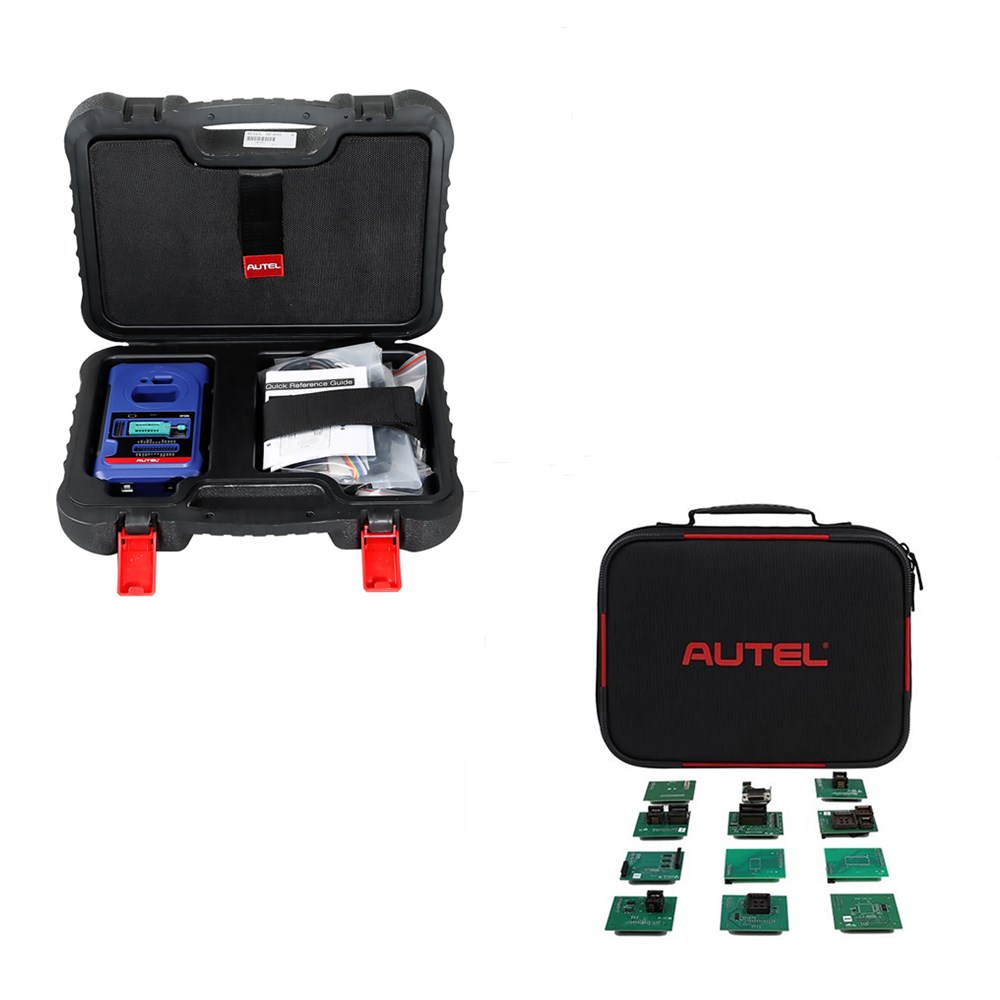

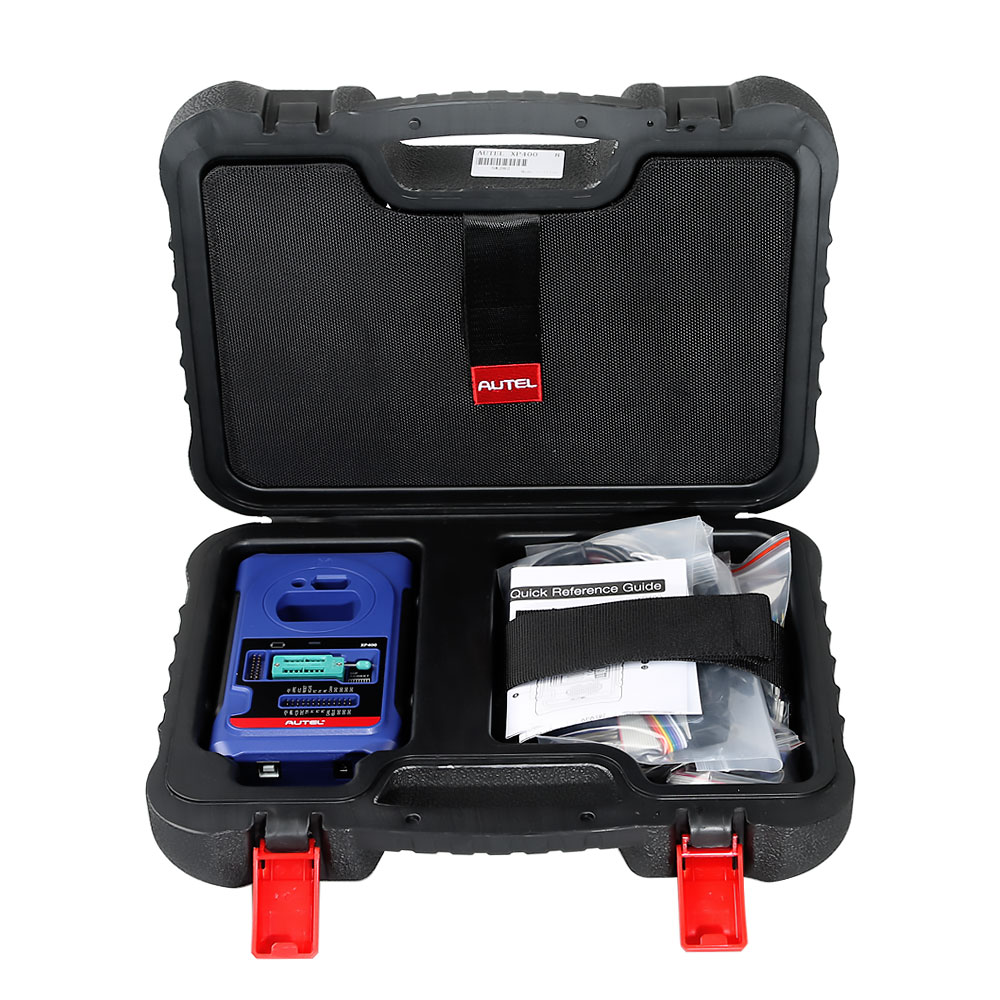

Package List：
1 x XP400 Pro Main Unit
1 x APB129 – EEPROM Adapter
1 x APA002 – EEPROM Socket
1 x APB125 – Mercedes Infrared Collector
1 x APB103 – MCU_PLCC52 Adapter
1 x APB104 – MCU_FQFP64 Adapter
1 x APB105 – MCU_FQFP80 Adapter
1 x APB106 – MCU_FQFP112 Adapter
1 x APB107 – MCU_FQFP144 Adapter
1 x APB108 – MCU_FQFP176 Adapter
1 x APB109 – MCU_FQFP32 Adapter
1 x APB110 – MCU_FQFP48 Adapter
1 x APB111 – MCU_SO28 Adapter
1 x APB113 – PCF79XX Adapter (Optional)
1 x APB114 – EWS3 Adapter (Optional)
1 x APB115 – NEC Adapter Plate (Optional)
1 x APB118 – NEC Steering Lock Adapter (Optional)
1 x APB119 – TB28FXXX Adapter (Optional)
1 x APB120 – TMS370 Adapter (Optional)
1 x APB121 – AM29FXXX Adapter Plate (Optional)
1 x APB122 – AM29FXXX Adapter 1 (Optional)
1 x APB123 – AM29FXXX Adapter 2 (Optional)
1 x APB126 – M35080&D80 Adapter (Optional)
1 x APB127 – MC68HC(7)05BXX Adapter (Optional)
1 x APB128 – MC68HC05X32 Adapter (Optional)
1 x APA101 – Spare Signal Cable
1 x APC101 – USB Cable (Standard USB –Type B USB)
1 x APA103 – EEPROM Clamp
1 x Dupont Line
1 x APA107 – ECU Cable
1 x APA108 – MCU Cable
1 x APA109 – MC9S12 Cable
