Perkins EST Interface 2024A without Bluetooth
EST enables the user to:
Override Powerwizard level three passwords
Configure and/or change system parameters
Display, graph and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view or change the current Configuration File or Base level Flash File
Upload, download and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results.
EST is comprised of a hardware and software PERKINS EST Diagnostic Adapter . EST is comprised of a hardware and softwareEST is comprised of a hardware and software interface kit, which a user can use to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Powerwizard control panels. This communication is established via a J1939 data link. All in all, the EST interface kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.
Why should an FG Wilson dealer invest in the Electronic Service Tool?
It provides the technician with an essential tool by facilitating the troubleshooting of electronic engines. As a matter of opinion, troubleshooting an electronic engine without EST is like troubleshooting an electrical panel without a multimeter Alex Cabrices FGW Latin America & Caribbean Service Advisor . Essential in replacing an ECM on a Perkins 2300/2800 series engine. A blank ECM can only be configured using EST. Essential in replacing or retrofitting an FG Wilson Powerwizard control panel module - the new standard in FG Wilson control systems. A blank module can only be configured using EST (installing the base flash file into a blank Powerwizard module). Enables the dealer to upload, download and save customer configuration files. Allows bypassing Powerwizard level three passwords. Enables dealers to update the software versions of customers Powerwizard control panels, as required. New software releases can enhance the control panels functionality. Enables dealers to install additional Powerwizard language files, as required.
What special tools or equipment do I need?
You will need a laptop computer with either a USB or serial port and Windows 2000 or XP. Please keep in mind that EST is fairly demanding on the CPU; hence, the slower the processor, the slower the program will run.

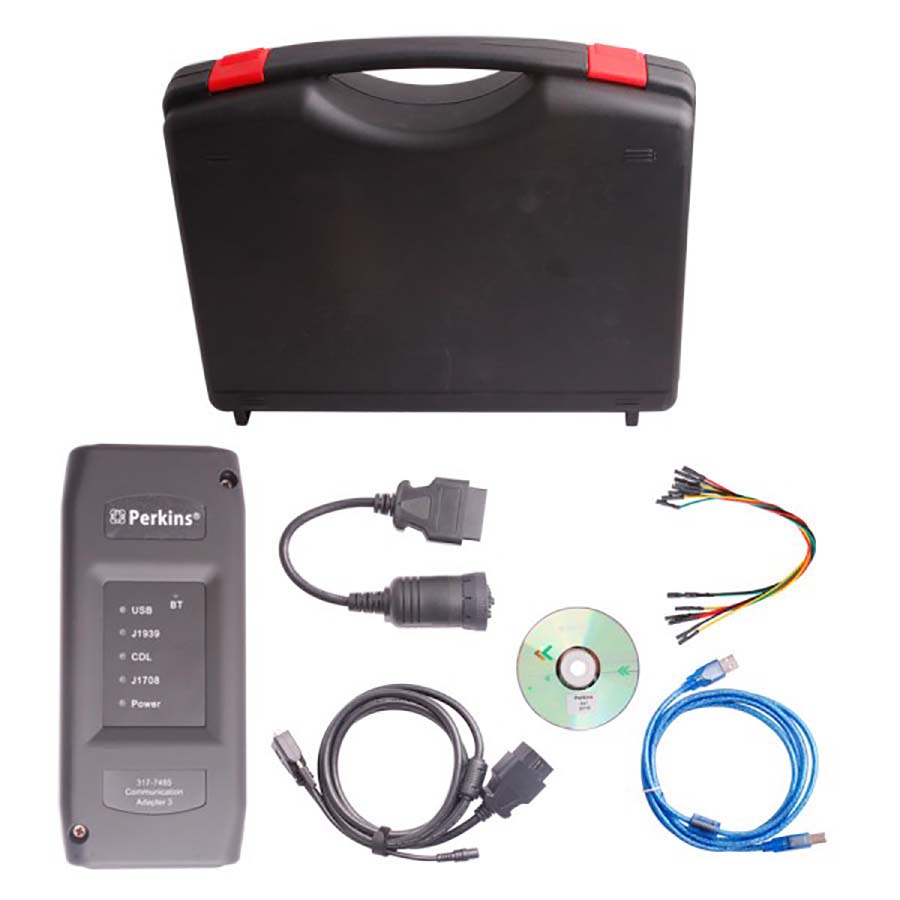

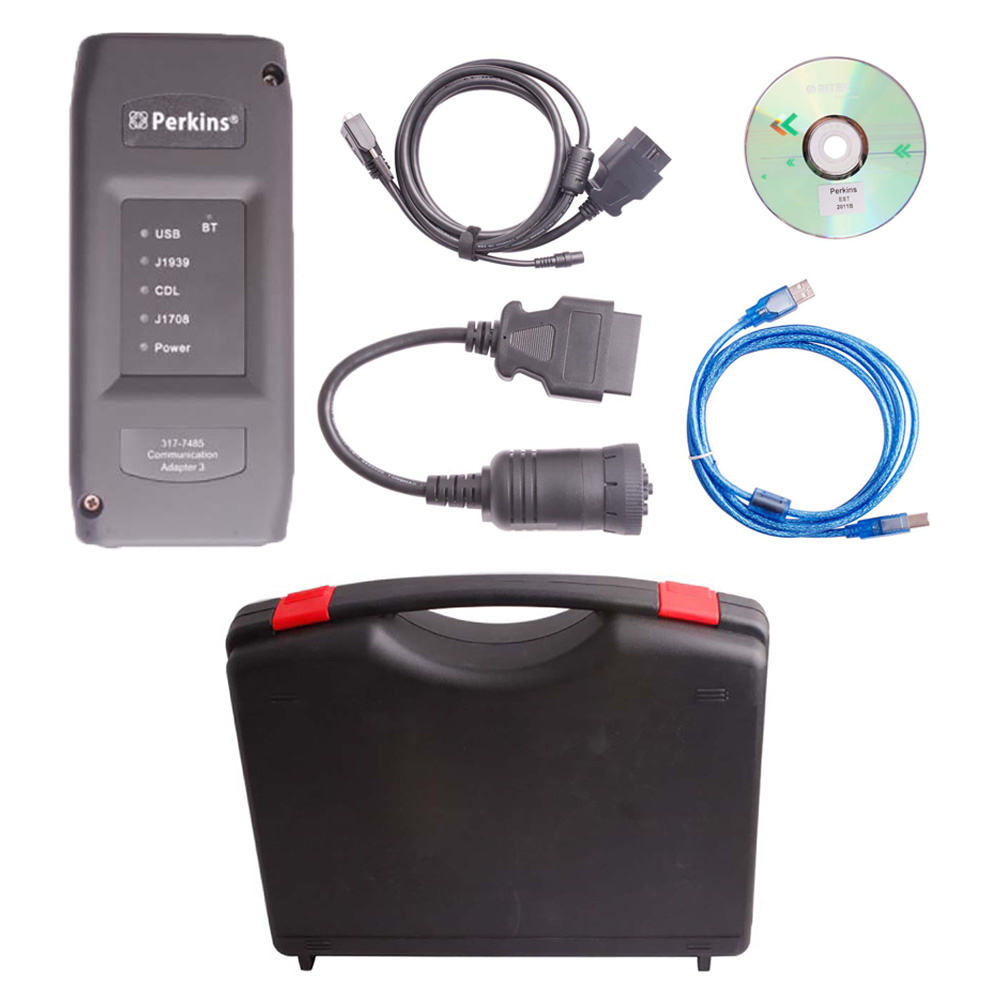

Package List :

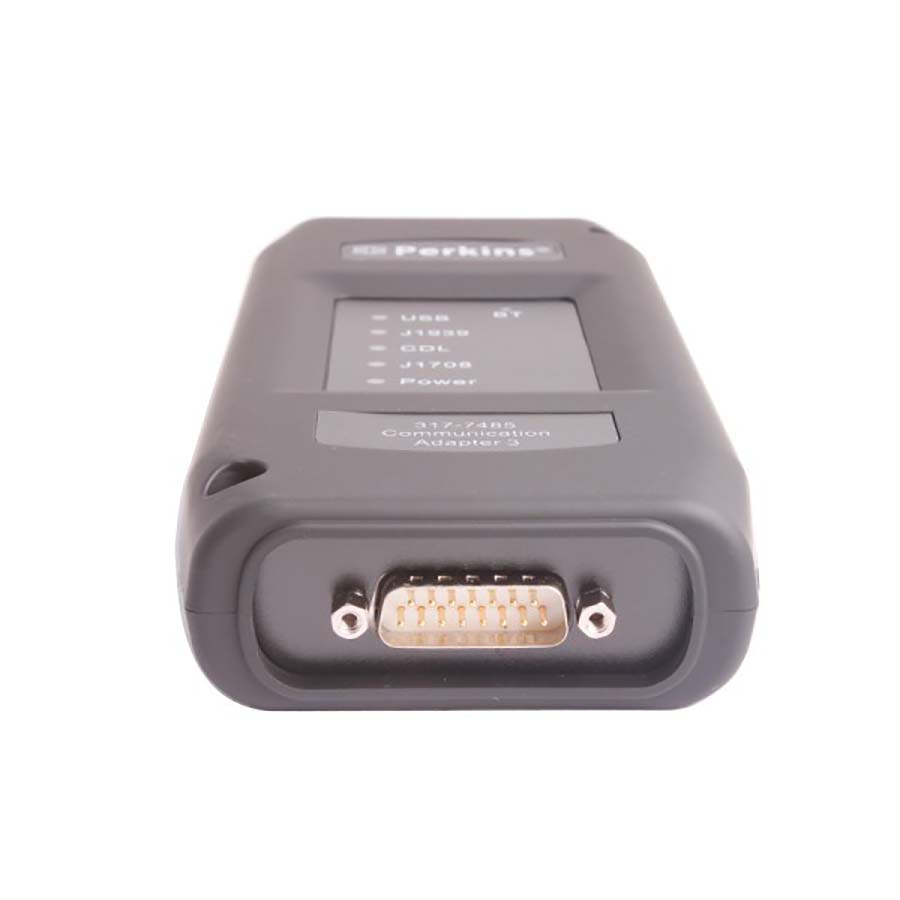

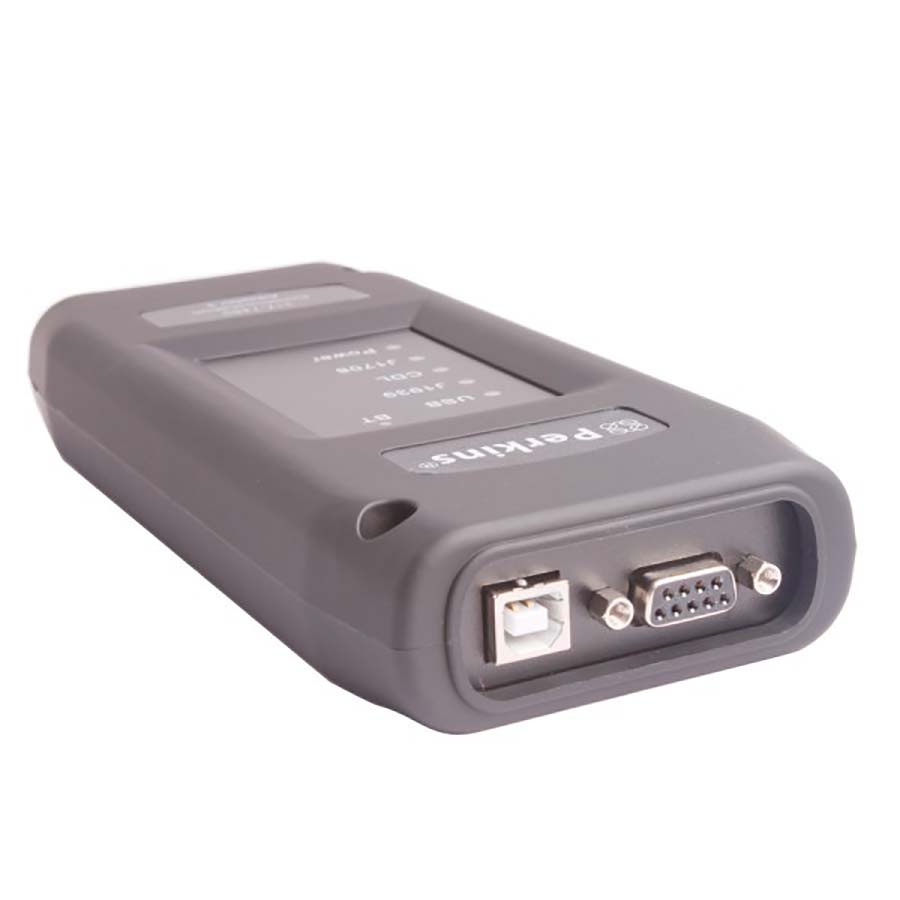

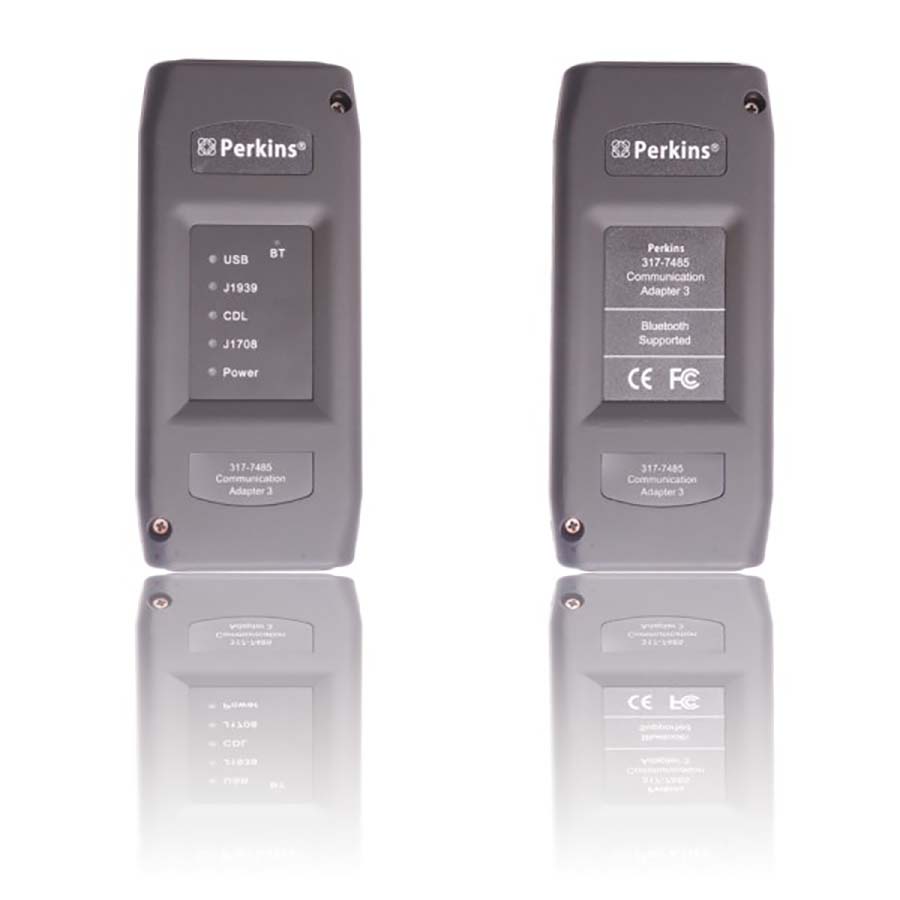

1*Perkins EST interface

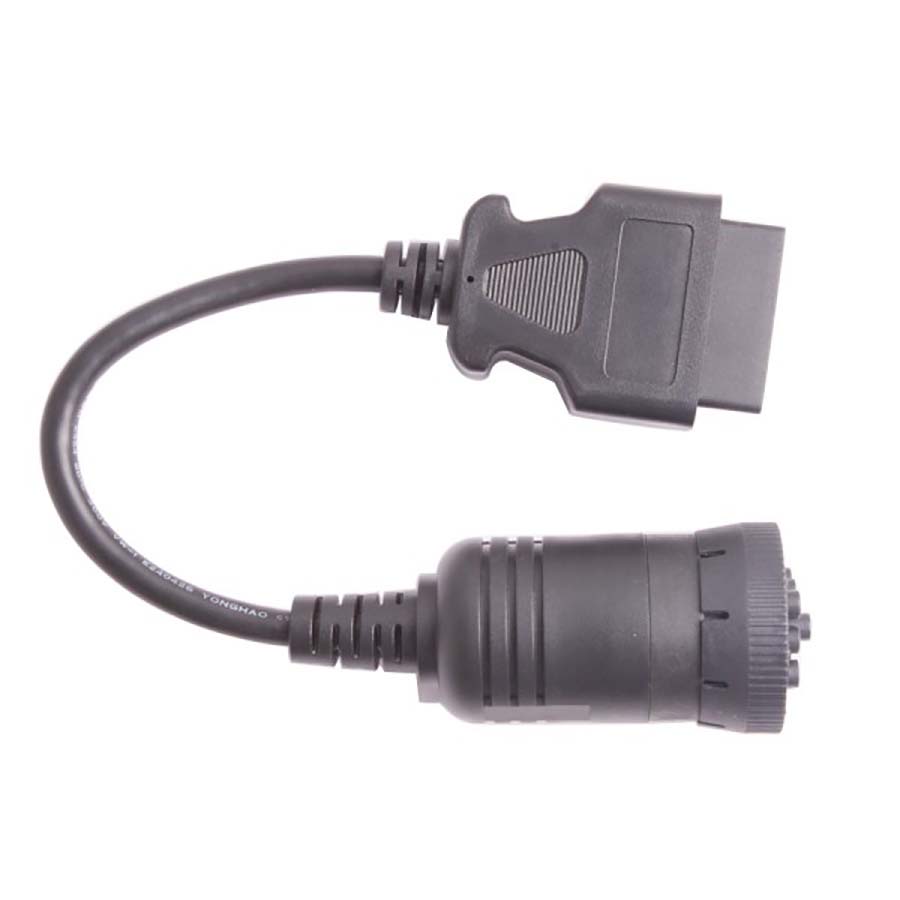

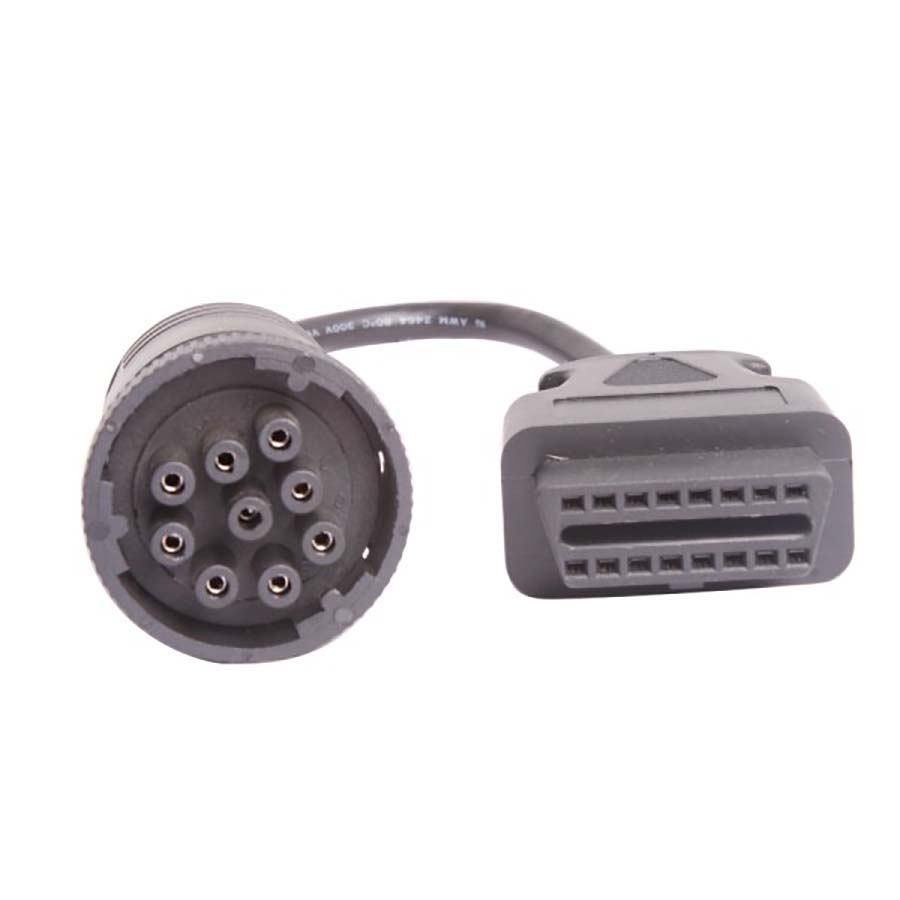

1*6pin and 9 pin cable

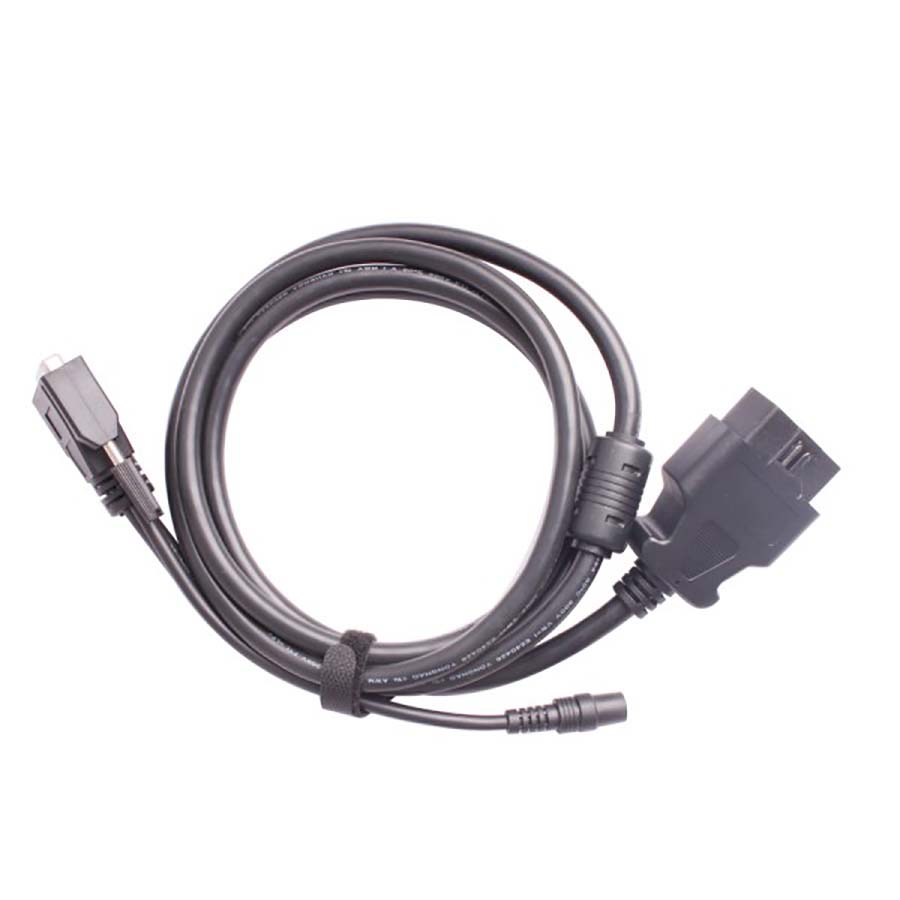

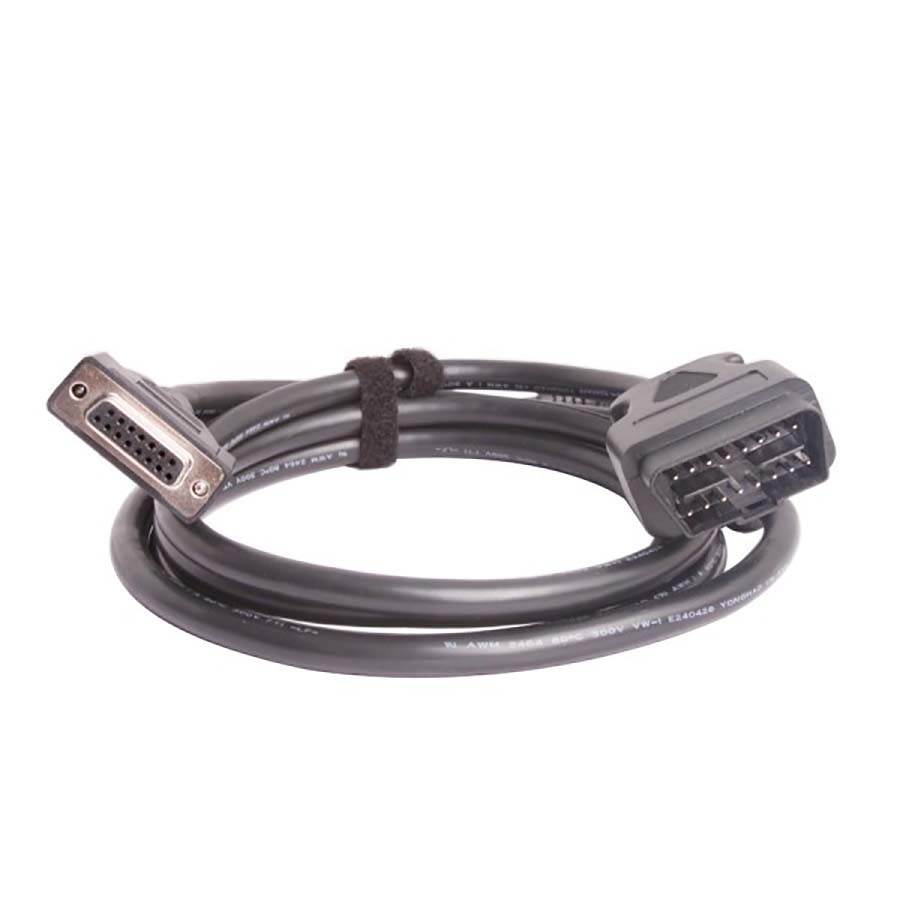

1*25 pin cable

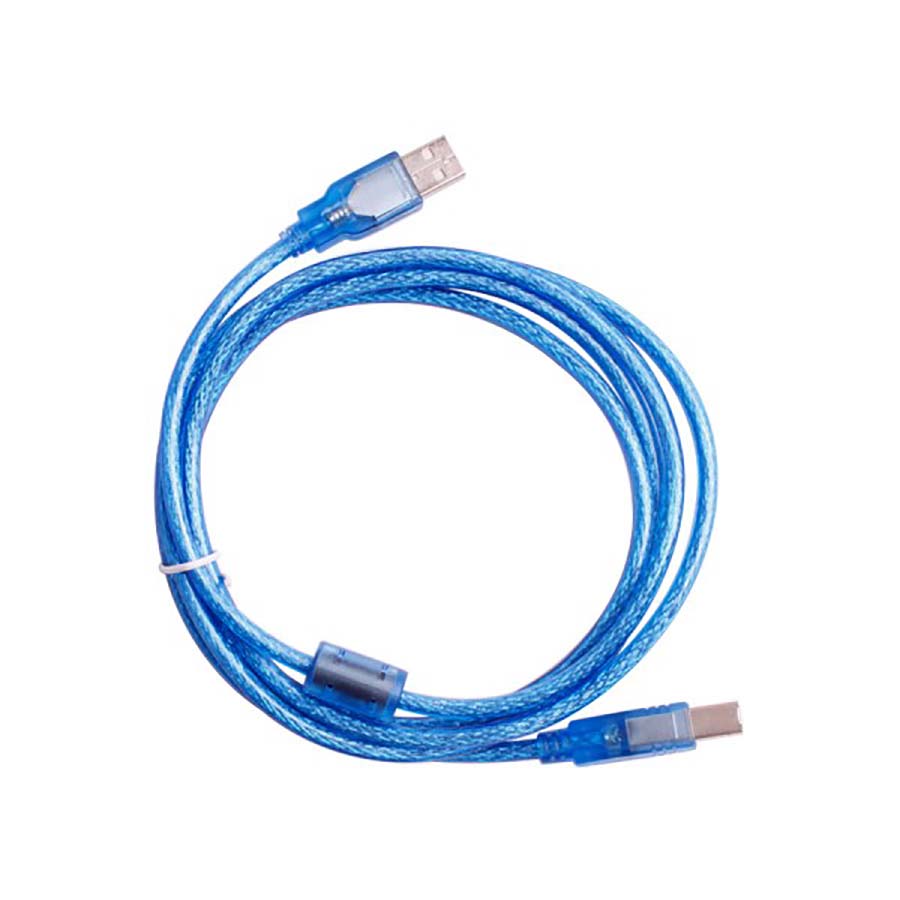

1*usb cable
1*Perkins EST software 2024A CD

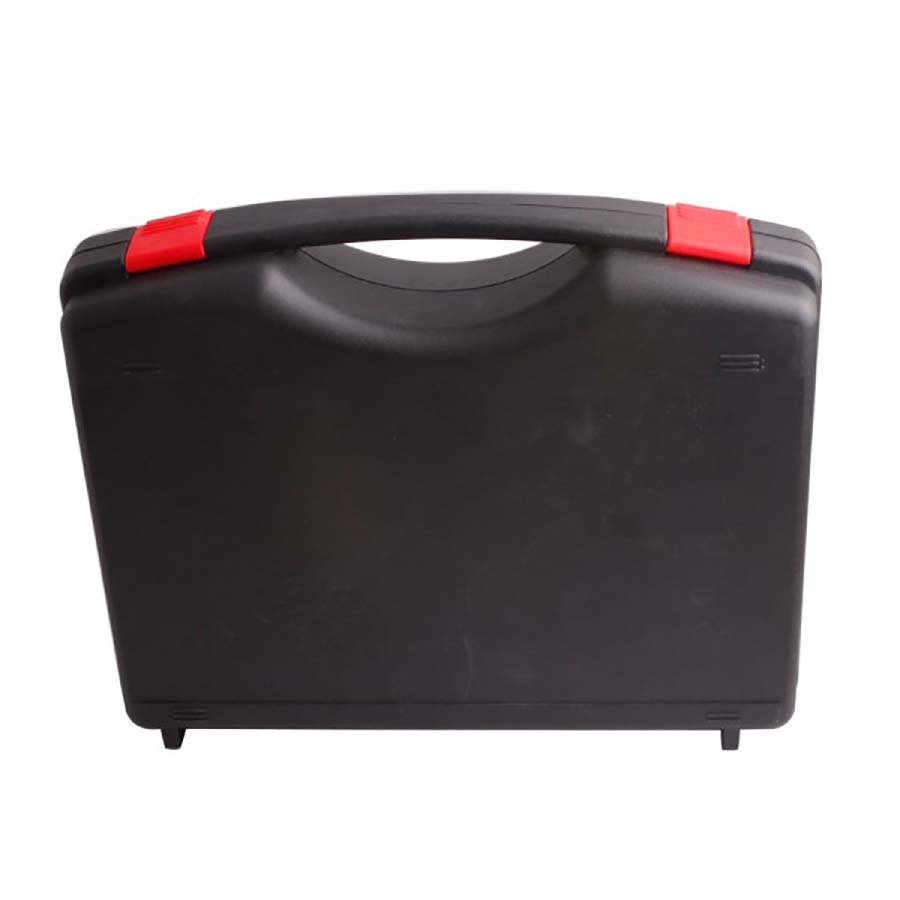

1*Plastic Box
FAQ:

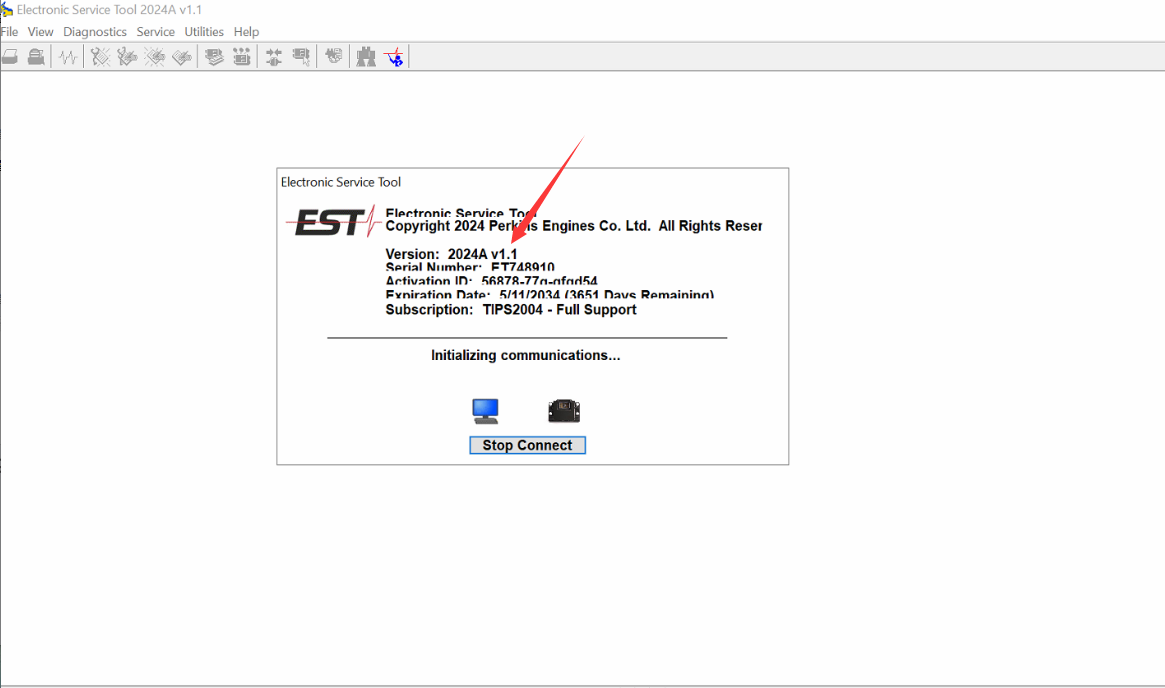

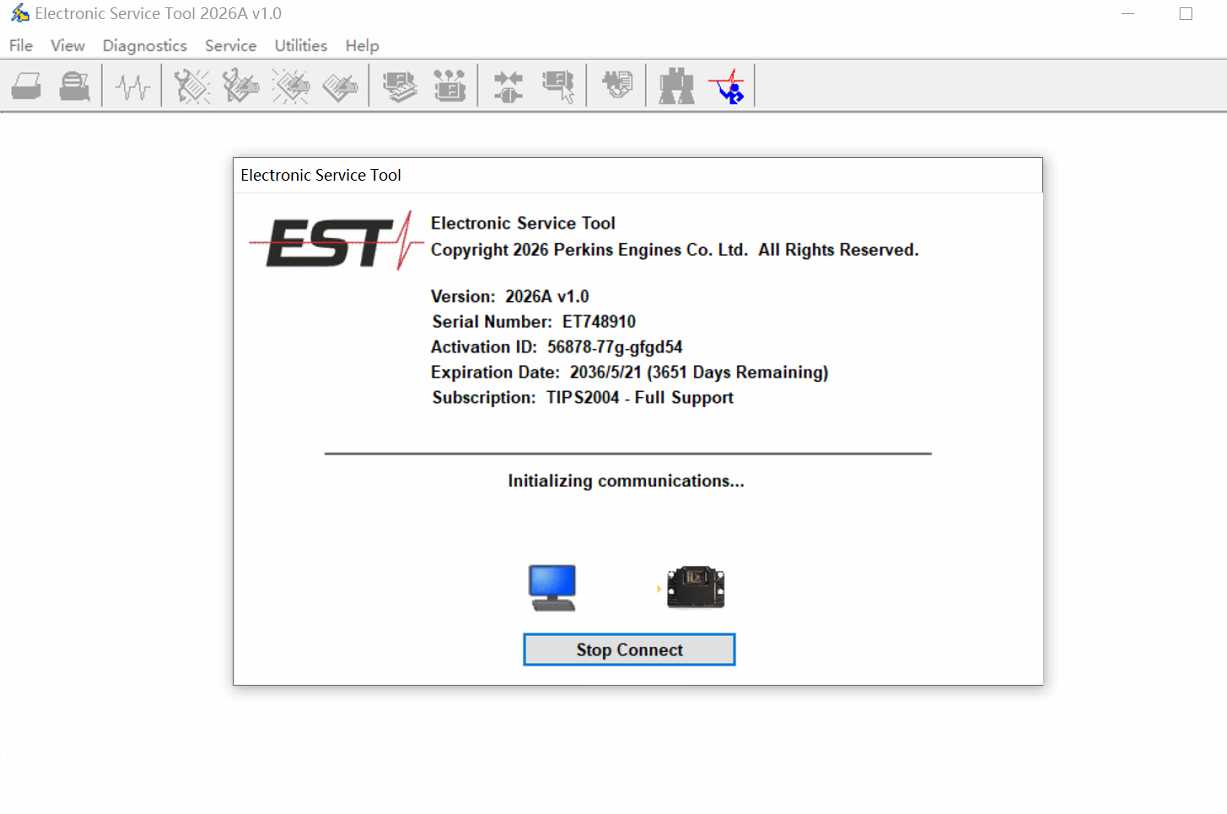

How can i get the activation code ?
After you receive the device ,please install the software ,and after the installation is done ,it'll ask for activation code .Please pass us the ID showing on the screen ,we'll generate the activation code for you .
